OpenAPI Tags

Tags are a way of grouping operations for various purposes, like creating more sensible navigation in API documentation, defining API lifecycle status with tags like “Beta” that can be filtered out later, or something else entirely.

Tags Object

The document-level tags field is an optional field, which is a list of objects describing each tag. Tags have at bare minimum a name, but can have a description, point to externalDocs, and potentially have some x-* extension properties.

tags:
  - name: drinks
    description: The drinks endpoints.
  - name: authentication
    description: The authentication endpoints.

Tags can then referenced by operations, with an array allowing multiple tags to be referenced.

paths:
  /drinks:
    get:
      operationId: listDrinks
      tags: [drinks]

Here is the full specification for the Tag Object.

Field
Type
String
Description
The name of the tag. Must be unique in the document.
Required
✅
Type
String
Description
A description of the tag. This may contain CommonMark syntax  to provide a rich description.
Required
Description
Additional external documentation for this tag.
Required
Type
String
Description
A short, human-friendly name for the tag. Available in OpenAPI v3.2.0+.
Required
Type
String
Description
The
of another tag that this tag is nested under. The named tag must exist in the document, and circular references must not be used. Available in OpenAPI v3.2.0+.
Required
Type
String
Description
A machine-readable string to categorize the tag. Common values include
,
, and
. See the tag kind registry . Available in OpenAPI v3.2.0+.
Required
Description
Any number of extension fields can be added to the tag object that can be used by tooling and vendors.
Required

Human-friendly or machine-friendly

Whether a tag should be human readable (e.g. Publishing Tokens) or machine-friendly (e.g.: publishingTokens) has been a long source of discussion in the OpenAPI world, but consensus is forming around machine-friendly tags more like variable names, in whatever format is preferred: PascalCase, camelCase, snake_case.

Then the human friendly name can be passed in one of two locations.

  1. For OpenAPI v3.0 and v3.1 users, the commonly used vendor extension x-displayName will work in most API documentation tools.
  2. OpenAPI v3.2 introduces a new tags.summary field to pass the human-friendly name.

Check to see which of these keywords are supported by documentation tools in the toolchain, and if neither perhaps go with a human-readable name until that tool supports x-displayName or the OpenAPI is upgraded to v3.2.

Grouping Tags

Tags are used for grouping operations, but sometimes its necessary to group tags, especially in larger APIs with hundreds (or even thousands) of operations.

tags:
  - name: stores
    x-displayName: Stores
  - name: inventory
    x-displayName: Inventory
  - name: employees
    x-displayName: Employees

x-tagGroups:
  - name: Store Management
    tags:
      - stores
      - inventory
  - name: Human Resources
    tags:
      - employees

Operations are then assigned to tags as normal. Tools which understand x-tagGroups like Scalar  and Redoc  will use them to create the nested navigation structures, and tools which do not understand the keyword will build the flat list of operations.

paths:
  "/stores":
    get:
      operationId: get-stores
      summary: Get Stores
      tags:
      - stores

  "/inventory":
    get:
      operationId: get-inventory
      summary: Get Inventory
      tags:
      - inventory

  "/employees":
    get:
      operationId: get-employees
      summary: Get Employees
      tags:
      - employees

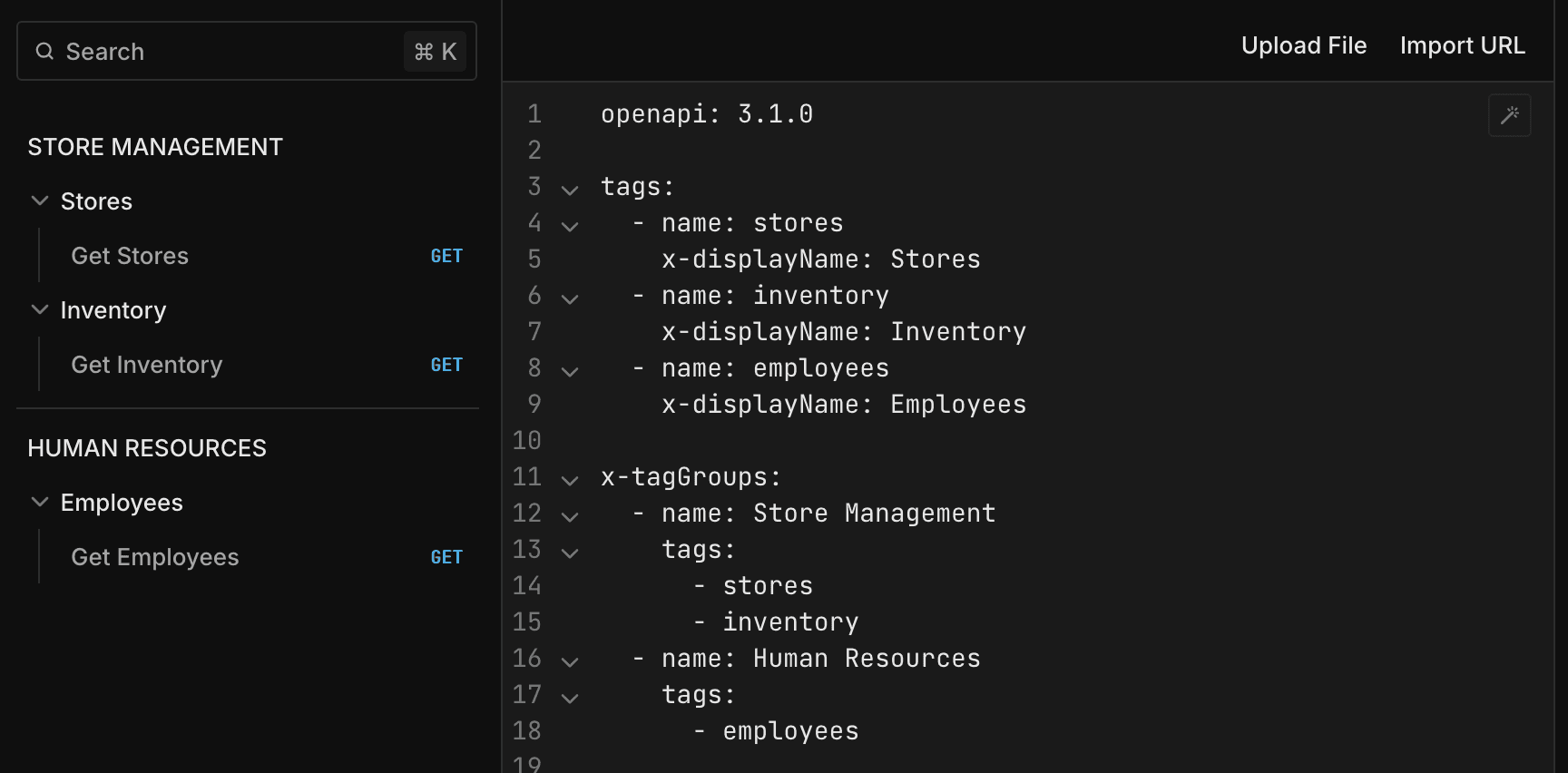

In Scalar the above example would look like this.

Screenshot of Scalar interpreting tag groups

OpenAPI v3.2 adds two new properties for handling tag grouping and nesting:

  • tags.parent - The name of a tag that this tag is nested under. The named tag must exist in the API description, and circular references between parent and child tags must not be used.
  • tags.kind - A machine-readable string to categorize what sort of tag it is. Any string value can be used; common values are nav for navigation, badge for visible badges, and audience for APIs used by different groups. A registry of commonly used values  is available.

The kind field enables tooling to differentiate between tags used for navigation and tags used for other purposes, such as badges or audience segmentation.

tags:
  - name: account-updates
    summary: Account Updates
    description: Account update operations
    kind: nav

  - name: beta
    summary: Beta
    description: Operations that are in beta
    kind: badge

  - name: partner
    summary: Partner
    description: Operations available to the partners network
    parent: external
    kind: audience

  - name: external
    summary: External
    description: Operations available to external consumers
    kind: audience

Best practices

Always define tags before referencing them

It’s allowed for operations to reference undefined tags (tags not defined in the document-level tags, but it is recommended that all tags used are defined here to provide useful documentation and intent for the tags.

Alphabetize tag definitions

Some documentation tools will automatically alphabetize them, some will not, so to make sure they are alphabetized for all documentation tools put them in that order in the OpenAPI document.
