Rate limiting is the art of trying to protect the API by telling “overactive” API consumers to calm down a bit, telling clients to reduce the frequency of their requests, or take a break entirely and come back later to avoid overwhelming the API.

Why bother with rate limiting

The main reason for rate limiting is to keep an API running smoothly and fairly. If all clients could fire off requests as fast as they like, it’s only a matter of time before something breaks. A spike in traffic (whether accidental or malicious) can overwhelm servers, leading to slowdowns, crashes, or unexpected high infrastructure costs.

Rate limiting is also about fairness. If there are loads of users accessing an API, it’s important to make sure one consumers mistakes do not affect another. For public APIs, it’s about making sure no one user can hog all the resources. For businesses, this could be different limits for free and various paid tiers to make sure profit margins are maintained.

How does API rate limiting work?

How can an API know when a client is making too many requests? That’s where rate limiting comes in. Rate limiting is a system that tracks the number of requests made by a particular target (based on IP address, API key, user ID, or other headers), within a defined time window.

The way this is implemented can vary, but the general process is the same:

• Request Received - A client makes a request to the API, asking for some data or to perform an action.
• Identify the client - The system identifies the client making the request, usually by looking at the IP address, API key, or other identifying information.
• Check usage history - The system checks how many requests the client has made in the current time window, and compares it to the limit.
• Allow or deny the request - If the client has made too many requests, the system denies the request with a 429 Too Many Requests status code. If the client is within the limit, the request is processed as normal.

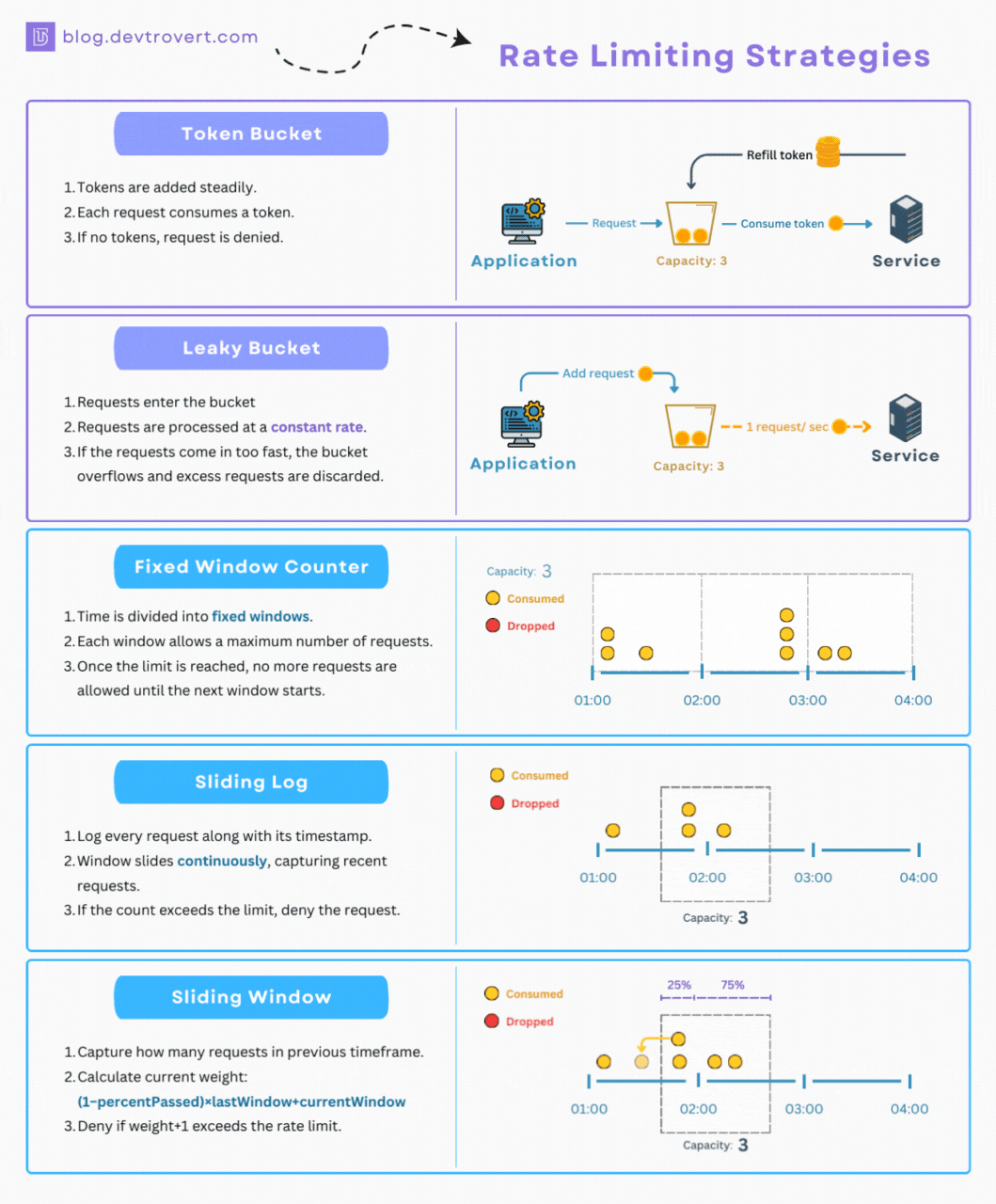

Different rate limiting strategies

There are a few different strategies for rate limiting, each with its own advantages and disadvantages.

• Token bucket: the system has a bucket of tokens, and each request consumes a token. Tokens are added to the bucket at regular intervals, 100 tokens a minute, or 1,000 tokens per hour. If there are no tokens left, the request is denied. Clients are rewarded for taking time out and accrue more tokens as they do. This can lead to a lot of sudden bursts of activity, but should generally keep an average amount of traffic going through the system.

• Fixed window: the system sets a fixed limit for a specific time window. For example, “Make 100 requests per minute.” This is the most common approach, but it can lead to very “lumpy” API traffic, where many clients are making the maximum number of requests at the start of a minute. This means an API can be stressed at the start of each minute and bored for the rest of it.

• Sliding log: instead of using the same time windows for all clients, the system sets a maximum number of requests for any 60 second period. This avoids the lumpy traffic concerns of many clients all maxing out at the start of the window, then doing nothing for the rest of it, as they would all have their own windows starting and stopping at different times depending on their usage.

• Sliding window: is a dynamic approach, adjusting limits based on real-time traffic patterns to optimize system performance and ensure fair access for all. This can be more complex to implement, but it can lead to a more efficient use of resources and a better experience for API consumers.

Different limit targets

There are a lot of choices to be made when it comes to rate limiting, and the first is: who or what are we trying to limit? Here are a few common targets for rate limiting:

• User-specific rate limits: Identifying a user by their API key or user ID and setting a rate limit for that user. This is useful for ensuring that no single user can overwhelm the API and slow it down for others.

• Application-specific rate limits: Identifying an application by its API key and setting a rate limit for that application. This is useful for ensuring that a misconfigured application cannot affect stability for other applications.

• Regional rate limits: Manage traffic from different geographic regions, to make sure an API can continue to service critical regions, whilst still allowing other regions to access the API.

Implementing rate limiting in HTTP

Rate limiting can be implemented at various levels, from the network layer to the application layer. For HTTP APIs, the most common approach is to implement rate limiting at the application layer with HTTP “middlewares” that keep track of these things, or API gateways which handle rate limiting like Zuplo, Kong, Tyk, etc.

Wherever the rate limiting is implemented, there are a few standards that can be leveraged to avoid reinventing the wheel.

The first is to return a HTTP error with a status code of 429 Too Many Requests (as defined in RFC 6585 (opens in a new tab)). This tells the client that they’ve exceeded the rate limit and should back off for a while.

HTTP/2 429 Too Many Requests

Instead of leaving the client to guess when they should try again (likely leading to lots of poking and prodding adding more traffic to the API), the Retry-After header can be added to a response with a number of seconds, or a specific time and date of when the next request should be made.

HTTP/2 429 Too Many Requests
Retry-After: 3600

Why not also add some proper error response to explain why the request was rejected, for any API consumer developers not familiar with these concepts.

HTTP/2 429 Too Many Requests
Content-Type: application/json
Retry-After: 3600

{
  "error": {
    "message": "Rate limit exceeded",
    "code": "rate_limit_exceeded",
    "details": "You have exceeded the rate limit for this API. Please try again in 1 hour."
  }
}

Doing all of this makes it clear to the client that they have entered a rate limit, and give them the information they need to know when they can try again, but there is more that can be done to make this more user friendly.

Rate limit headers

Documenting the rate limit in the response headers can help API consumers to understand what’s going on. There are various conventions for headers to help consumers understand more about what the rate limiting policy is, how much of the limit has been used, and what is remaining.

GitHub for example uses the X-RateLimit-Limit, X-RateLimit-Remaining, and X-RateLimit-Reset.

Twitter uses X-Rate-Limit-Limit, X-Rate-Limit-Remaining, and X-Rate-Limit-Reset.

Similar but different, which causes all sorts of confusion. Designing an API to be the most user friendly means relying on standards instead of conventions, so it’s worth looking at the RateLimit header draft RFC (opens in a new tab) which outlines one new RateLimit header to cover all those use cases and a few more.

The following example shows a RateLimit header with a policy named “default”, which has another 50 requests allowed in the next 30 seconds.

RateLimit: "default";r=50;t=30

The RateLimit header focuses on the current state of the various quotes, but it doesn’t provide information about the policy itself. The same draft RFC also outlines a RateLimit-Policy header which can be used to provide information about how the policy works.

This example shows two policies, “default” and “daily”. The “default” policy has a quota of 100 requests and a window of 30 seconds, while the “daily” policy has a quota of 1000 requests and a window of 86400 seconds (24 hours).

RateLimit-Policy: "default";q=100;w=30,"daily";q=1000;w=86400

Combining these two headers can provide a lot of information to API consumers to know what the rate limits are, how much they have used, and when they can make more requests.

This can be a bit of work to set up, but it allows API consumers to interact with an API more effectively, with less frustration, and keep everything running smoothly.

Alternatives to Rate Limiting

Some people argue that rate limiting is a blunt tool. It can be frustrating for users who hit the limit when they’re trying to get work done.

Poorly configured rate limiting can be fairly arbitrary.

Consider an API that could theoretically handle 1000 requests per second.

If there are 1000 users, each with a rate limit of 1 request per second, the API would be maxed out.

If that same API with 1000 users and only two of them are using up the their maximum quotas, then the API could absolutely handle the load, and the API is sitting their underutilized sitting around waiting for potential activity which wont come.

Not only is that a waste of server resources (hardware, electricity, CO2 emissions), but it’s also frustrating for those users who are constantly being told to calm down when they could be using the API to handle more activity; activity which could be profitable.

One alternative approach is known as backpressure. This is a more dynamic system which tells clients to ease up when the system is under strain, with a 503 Service Unavailable response with a Retry-After header. This could be applied to the entire API, to specific users, or even specific endpoints that are more resource intensive.

Quota-based systems are another alternative. Instead of measuring requests per second or minute, users are assigned a monthly allowance. This works well for subscription-based APIs, where users pay for a certain amount of access. If they make a mistake and use up their quota too quickly, they can buy more, and other API consumers can still access the API. This lends itself better to auto-scaling up (and back down) based on number of active users and usage.

Final Thoughts

Rate limiting begins as a technical safeguard for an API (which makes managing it easier) but ensures nobody is hogging resources (which keeps users happily using the product).

It’s worth thinking about where and how to implement it, how to communicate it, and how to make it as user-friendly as possible. It’s not always simple for junior developers to figure out how to work with rate limiting and they might not know all the HTTP status codes and headers. The more tooling you can provide to assist your users with responding to your rate limiting, the better.
