Apply an overlay

Speakeasy provides two options for applying overlays:

  • Option One: Add the overlay directly to the Speakeasy workflow file, ensuring automatic application with every generation
  • Option Two: Output a new OpenAPI document with the overlay applied, creating an updated reference document

Option One: Add an overlay to a Speakeasy workflow

The Speakeasy workflow supports using an overlay file to modify a source OpenAPI document. For more information on sources, refer to the documentation on core Speakeasy concepts.

1. Install the Speakeasy CLI

brew install speakeasy-api/homebrew-tap/speakeasy

2. Choose the source

Run speakeasy configure sources and select or create a source to add an overlay to the Speakeasy workflow file.

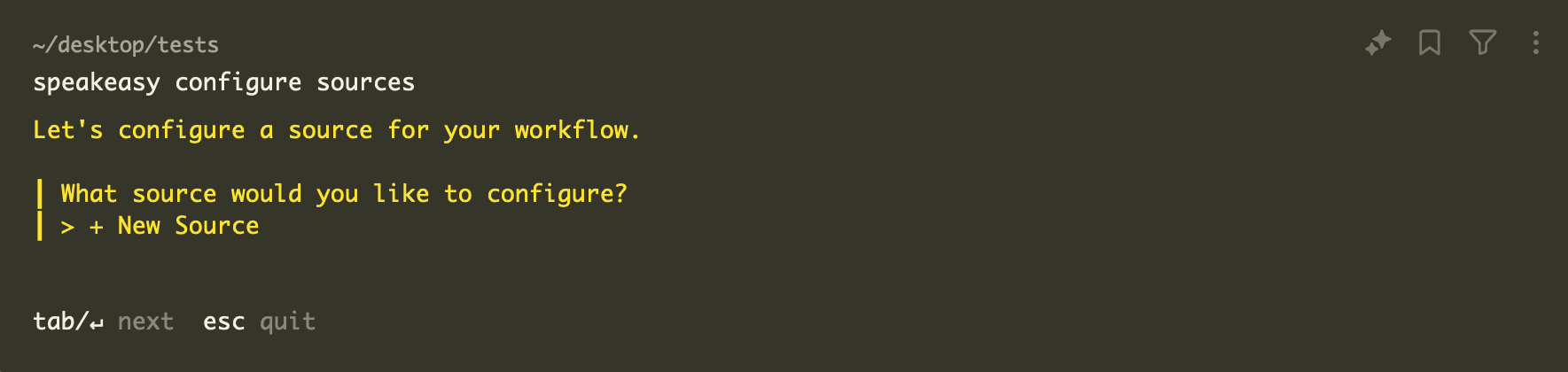

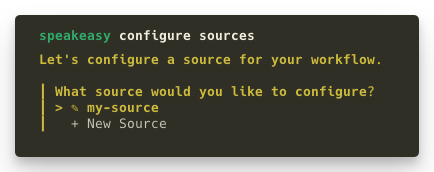

Screenshot of the terminal after running speakeasy configure sources.

3. Add an overlay

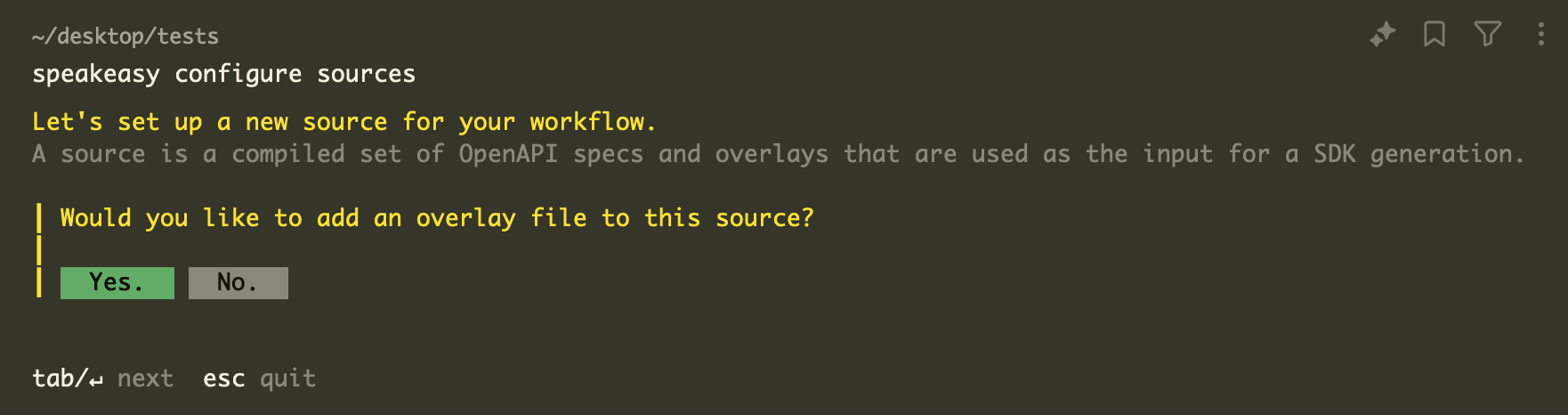

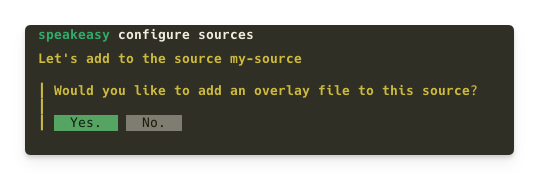

Screenshot of the terminal prompting the user to add an overlay.

4. Provide the overlay file path

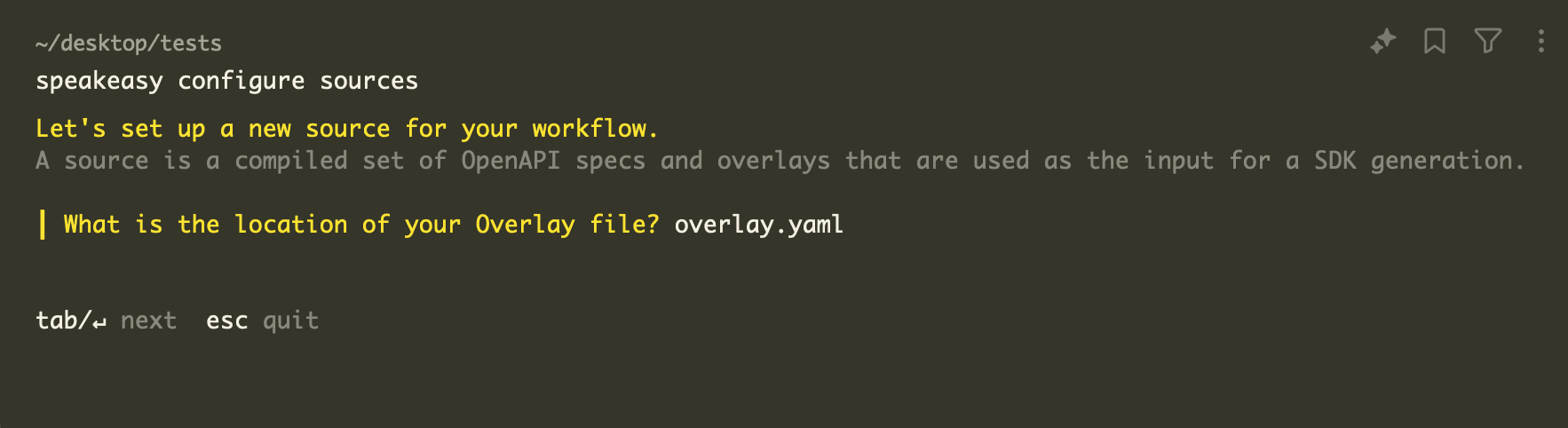

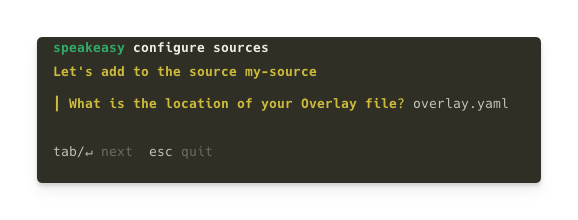

Screenshot of the terminal showing a succesful overlay application.

5. Provide the location for the output build

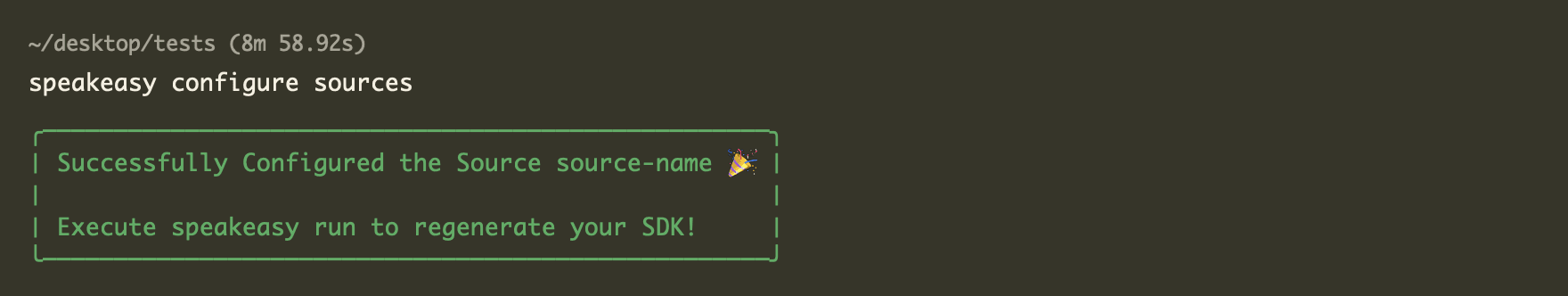

Screenshot of the terminal showing completed setup.

The overlay will now apply to the OpenAPI document as part of the Speakeasy workflow. Execute the workflow by running speakeasy run.

Option Two: Create a new OpenAPI document with an overlay

Creating a new OpenAPI document provides the ideal option for generating a new reference document.

1. Install the Speakeasy CLI

brew install speakeasy-api/homebrew-tap/speakeasy

2. Validate the overlay

Validate the overlay before applying it to ensure adherence to the OpenAPI Overlay Specification using this command:

speakeasy overlay validate -o overlays.yaml

3. Apply the overlay

Apply the overlay to the OpenAPI document with this command. Replace input-openapi.yaml with the path to the original OpenAPI document, and overlays.yaml with the path to the overlay file:

speakeasy overlay apply -s input-openapi.yaml -o overlays.yaml > combined.yaml

This command merges changes from the overlay file with the original OpenAPI document and outputs the result to a new file named combined.yaml.

4. Review the merged results

The combined.yaml file contains the original OpenAPI document updated with modifications from the overlay. Review this file to confirm changes are applied as expected.
